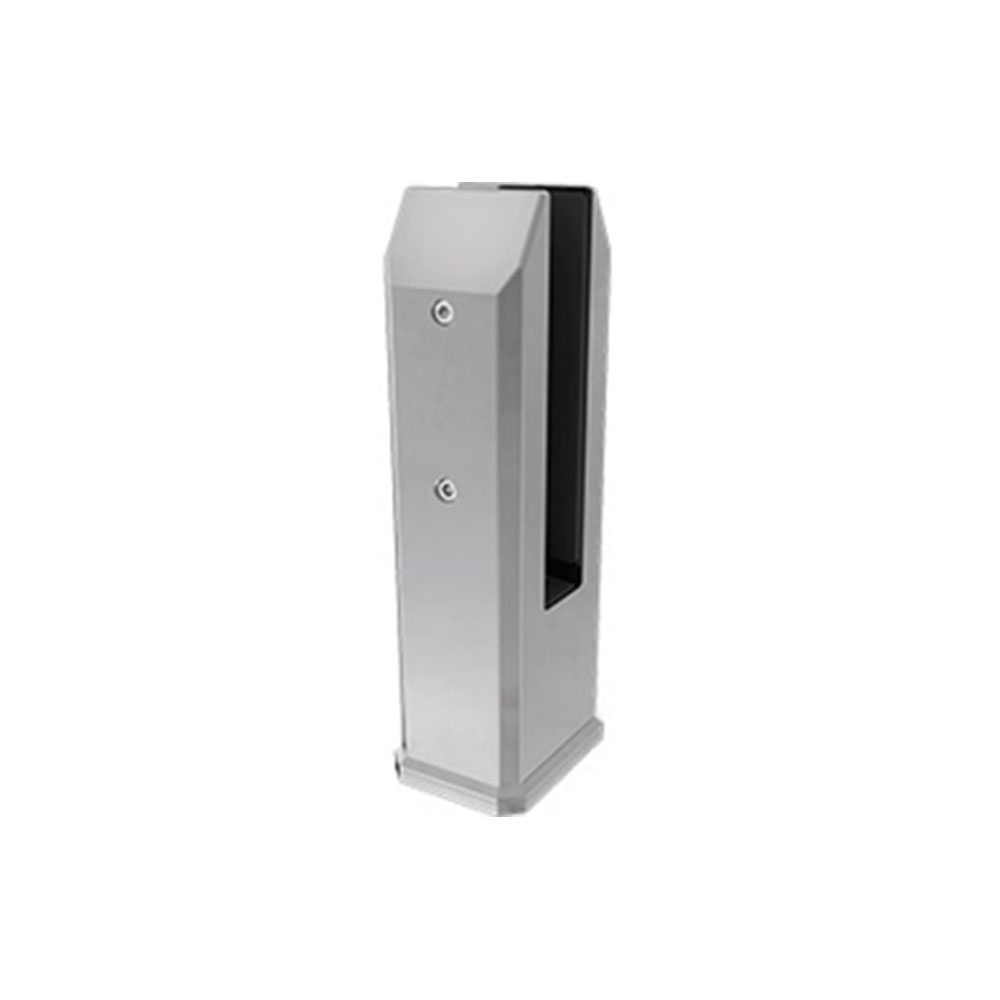

Madrid Deluxe Top Fix Spigot

Madrid Deluxe Top Fix Spigot
2205 Stainless Steel – Ideal for narrow beam/PFC beam installations

Stainless Steel 2205 is a superior duplex stainless steel. It features elevated levels of chemical components enabling superior strength and corrosion/pitting resistance. SS2205 is commonly used in harsh marine environments.

• Suitable for balustrade and pool fencing installation
• Top fix spigot installed with single central M12 fixing and specially machined nut
• Single central fixing ideal for narrow/PFC beams and slab installations
• No large core holes, dress rings or domical covers required
• Stainless Steel 2205 Spigot in polish or satin finish

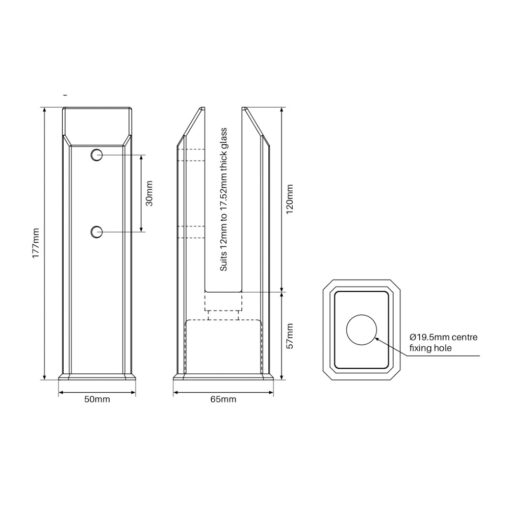

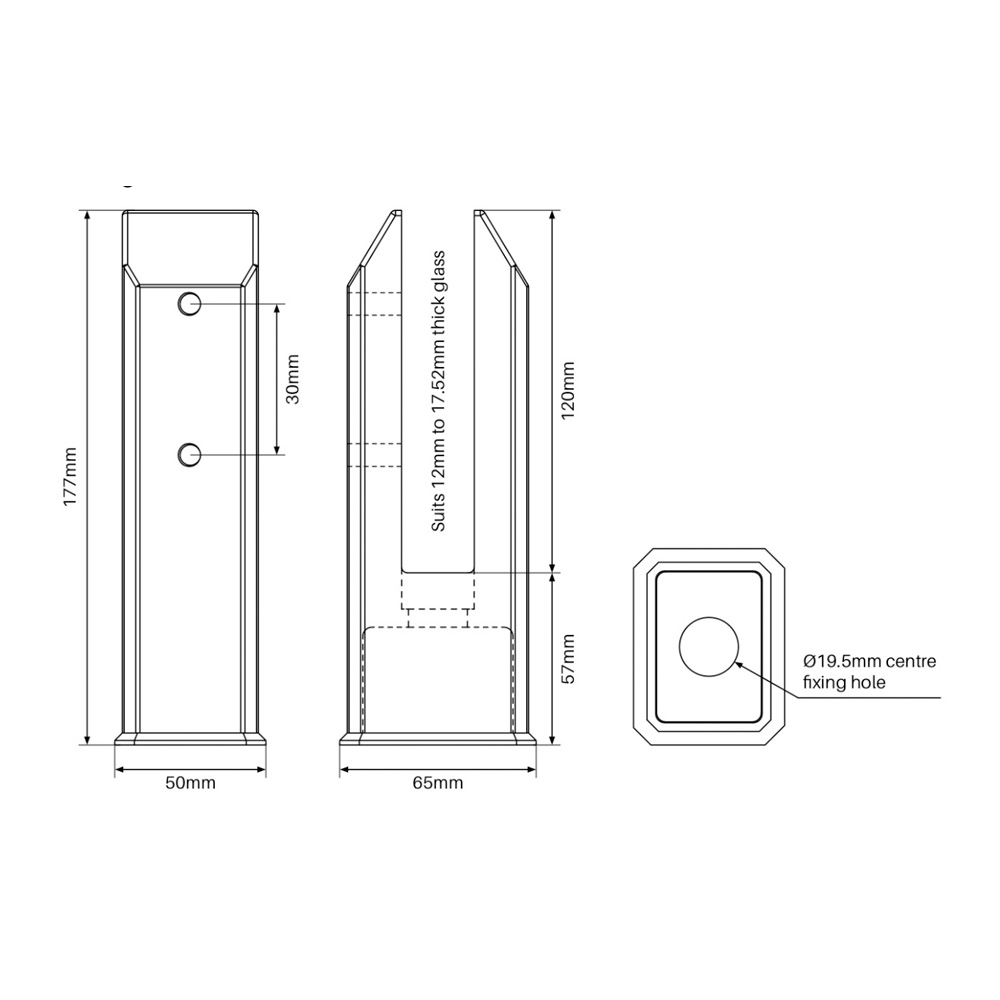

• 45mm front slimline profile x 65mm depth
• Suits 12mm up to 17.52mm glass
• Friction fit glass installation with recessed friction packer – no holes in glass required
• 120mm depth spigot mouth provides extra clamping strength and rigidity
• Packers included for glass sideways and tilt adjustment
• 5mm thick SS2205 height adjustment packer for uneven surfaces available in polish or satin finish (sold separately)
